High Voltage DC & Square Pulse & AC
Low TC Divders & Probes

•

  Type SVD

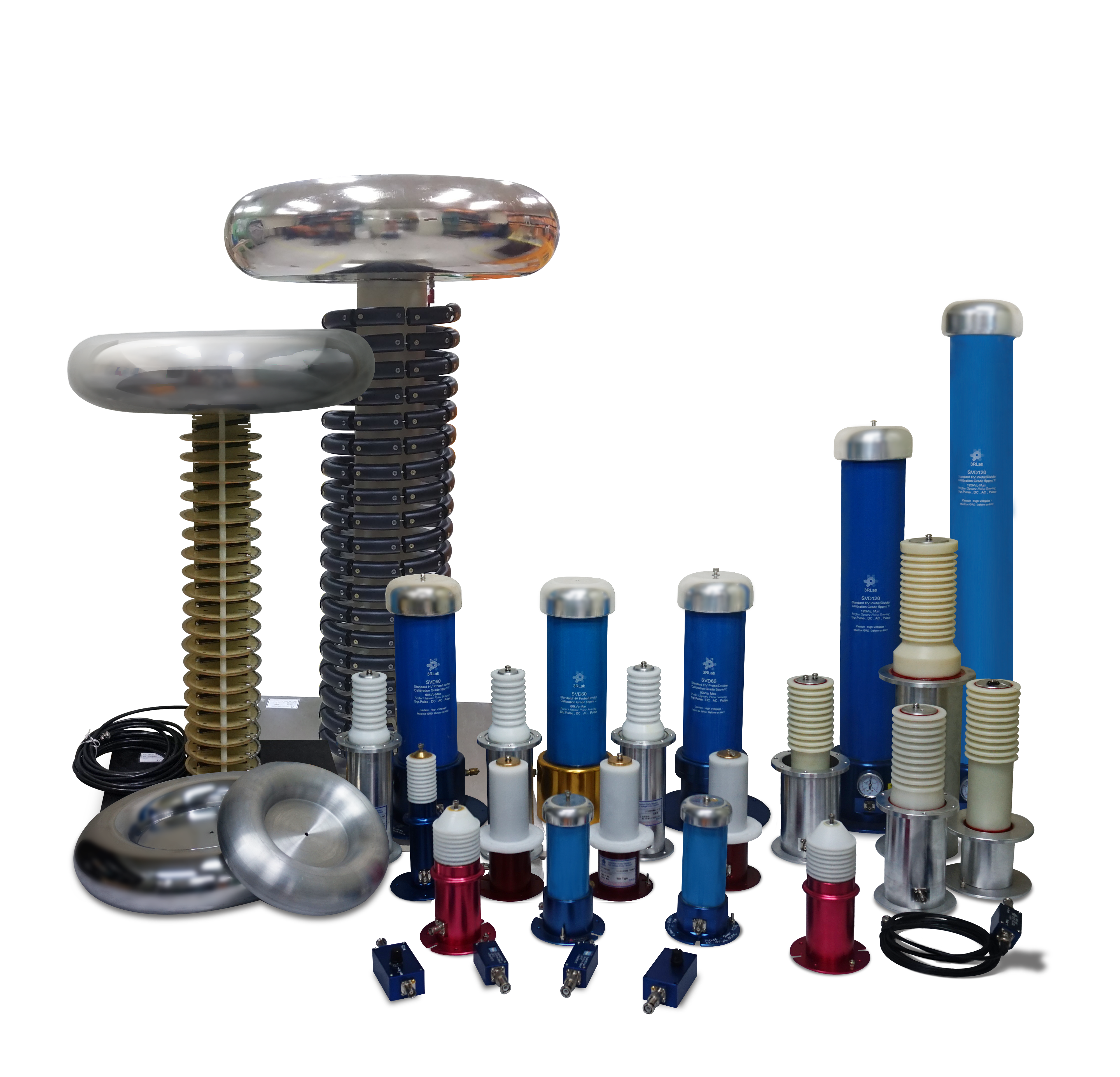

  3RLab produces SVD - series High Voltage Ultra Stable Precision
  Low TC High Accuracy Dividers & Probe..

  SVD measures and senses pulsing, artificially modulated repetitive pulsing, various duration,
  fast rising time, squiggling, DC, AC, waveband from DC to 1MHz (75MHz on SVD7015A).
  Accuracy very specially 0.01% DC, and DC-TC 5ppm typ.

•

  Type PVD




  Portable Type HV Square Pulse DC AC Probe, Variable Impedance Available
  ;Economic version

•

  Type TID




  Tank Inserted Stray Free HV Square Pulse DC AC Dividers & Probes

•

  Type CSVD




  Ultra Low TC Calibration High Voltage DC Divider / Probe System

•

  Type CD




  High Voltage Square Pulse & Pulses, wave-shape Signal up to 150kVp 300kVp 500kVp in oil,
  voltage ratio 10000/1 in normal & custom available.

  CD-series, Capacities High Voltage Pulse, (AC p-p), Dividers in Oil & Air

•

  Type UD HD




  Non-Inductive High Voltage High Ohmic Functional Divider Sets Custom Voltage Ratio Available.

  Typical voltage ratio 1,000:1~20,000:1, as well as custom voltage ratio available 0.1% 0.2% 0.5%
  are voltage ratio tolerances, Low TCR, Low VCR, Custom design available.
